Up to 22 Functions

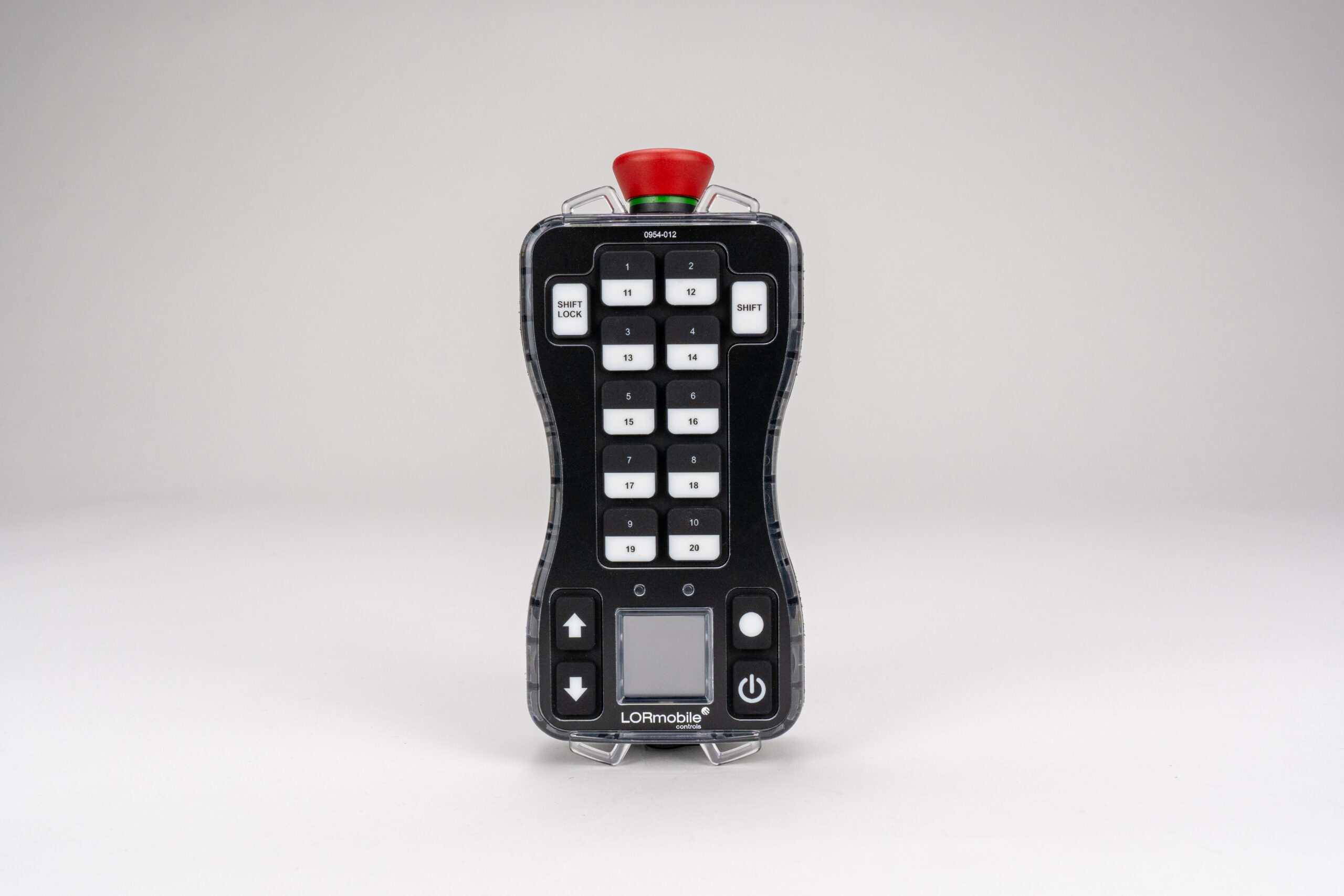

When you need complex machine control in the palm of one hand, look no further than the Ranger Transmitter. The Ranger transmitter was designed with the industrial crane market in mind, yet is well-suited for most mobile machine control applications. Configurable keypad engraving and custom receiver programming allow the Ranger to control up to 22 separate machine operations. Two-step buttons with haptic feedback are also available on this model.
The Ranger Transmitter is available in 900 MHz or 2.4 GHz and pairs easily with the LXR Series receiver using our innovative Quick-Link Technology. Simply wave the Ranger Transmitter across the LXR to pair them, and you will be ready for work. At the end of your shift, just dock the Ranger Transmitter to the LXR using the magnetic feet for quick, efficient charging. A state-of-the-art, sunlight-readable display screen rounds out the Ranger’s top features. This customizable display provides operators with J1939 engine information, charge/power status, link status and system fault codes.
Details
Specs
Documentation
Related Products
Model #: LXH
- Up to 22 functions
- Frequency Range: ISM 902 – 928 MHz; 2400 – 2483.5MHz
- Ingress Protection: IP67
- Sun Readable Display Provides Operator Feedback for System Status/Faults
- Operating Range: 2.4 GHz 600′: 900 MHz 1500′
- Operating Voltage: 3.3 to 12 VDC (3 × AA Alkaline Batteries; 4.8 VDC Typical)
- Operating Temp: –40°– 176°F
- Weight: ¾ LBS.
Options:
- 2-Step Buttons with Haptic Feedback
- Magnetic Charging Station*
- LOR Quick Link Technology*
- Customizable Keypad
- Twist-to-Reset E-Stop
- Tethering
* LXR Receiver Required.
+
–
Re Receiver Options
LXR Receiver
CAN Communication Only
LXM Receiver
12 High Side Outputs, 6 Low Side Outputs, J1939 Communication
LXG Receiver
CAN Communication Only
+
–
General Specifications (900 MHz)
Frequency Range
ISM 902MHz–928MHz
Frequency Control
7 Frequency hopping channels ( Software Selectable )
Modulation
DSSS ( Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
Operating Range
Approx. 1,500Ft. ** (Line of Sight)
+
–
General Specifications ( 2.4GHz )
Frequency Range
2403.328MHz – 2480.128MHz ( ARIB STD-T66 ) 2473.984 – 2493.440MHz (RCR STD-33)
Frequency Control
42 Frequency hopping channels ( Software Selectable )
Modulation
MSK
Security
Channelization, System ID, and Vendor ID
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
Operating Range
Approx. 1200Ft. (Line of Sight) Operating range is based on the use of an internal antenna; an external antenna may increase the range significantly depending on the application
+
–
Transmitter Specifications
Supply Voltage
9 VDC Min.; 32 VDC Max
Max. Current Consumption
less than 180 mA (RF Active); less than 10 mA (Idle Mode)
Digital Inputs
10 x 2 step push buttons with Haptic Feedback
2 x Single step push buttons
E-Stop Input
Analog Inputs
8 Available – 0-5 VDC (configurable as Digital Inputs)
LED Outputs
2 (RF and Error)
CAN Connection
J1939 (2-wire)
Power Saving Features
RF Emissions Off Delay less than 1s; Sleep Mode after 3 min (less than 1 mA)
Antenna
Internal is standard, but external antenna is available upon request
Dimensions
Approx. 8.75″ x 4.5″ x 4.5″
Weight
Approx. 2 Lbs.
Enclosure
IP67
