34 Digital Inputs, 8 Analog Inputs

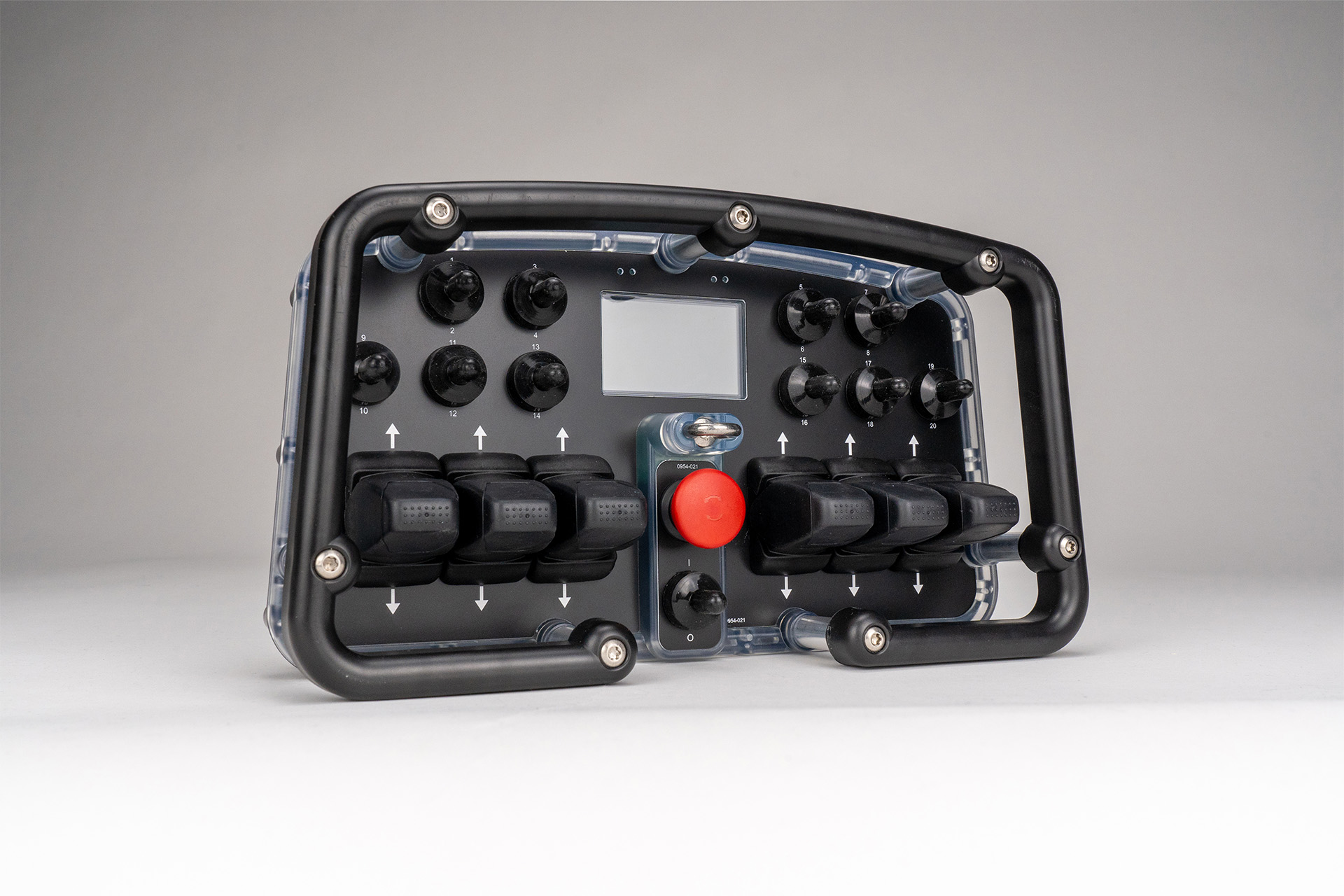

The Stryker Pro Transmitter was designed with a wide range of industrial applications in mind. The compact construction fits comfortably in your hands allowing easy access to all controls on the transmitter. Integrated Rare Earth Neodymium magnets mounted on the base of the enclosure allow any piece of steel to become a temporary mount. All layouts include the On/Off toggle switch, LCD display and rotary encoder for display selection in the center of the Transmitter.
Details
Specs
Documentation
Related Products
Model #: LXT
Options:
- LXR Series
- LXM J1939
- LXG Series
- Digital Inputs: 34
- Analog Inputs: 8 Available
- Ingress Protection: IP67
- Output Protection: Over Load Shutdown; Open Load Detection
- Maximum Load: 6 amps
- Operating Temp: –40°–170°F (-4°–129°F with Rechargeable Batteries)
- Protocol: SAE J1939
Internal is standard but external antenna is available upon request
Operating range is based on the use of an internal antenna; an external antenna may increase the range significantly depending on the application
Options:
- LXR Series
- LXM J1939
- LXG Series
+
–
General Specifications (900 MHz)
Frequency Range
ISM 902MHz–928MHz
Frequency Control
7 Frequency hopping channels ( Software Selectable )
Modulation
DSSS ( Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
+
–
General Specifications ( 2.4GHz )
Frequency Range
2403.328MHz – 2480.128MHz ( ARIB STD-T66 ) 2473.984 – 2493.440MHz (RCR STD-33)
Frequency Control
7 Frequency hopping channels ( Software Selectable )
Modulation
DSSS ( Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
Operating Range
Approx. 1200Ft. (Line of Sight) Operating range is based on the use of an internal antenna; an external antenna may increase the range significantly depending on the application
+
–
Transmitter Specifications
Supply Voltage
9 VDC Min.; 32 VDC Max
Max. Current Consumption
less than 180 mA (RF Active); less than 10 mA (Idle Mode)
Digital Inputs
34 Available
Analog Inputs
8 Available – 0-5 VDC (configurable as Digital Inputs)
LED Outputs
2 (RF and Error)
CAN Connection
J1939 (2-wire)
Power Saving Features
RF Emissions Off Delay less than 1s; Sleep Mode after 3 min (less than 1 mA)
Antenna
Internal is standard but external antenna is available upon request
Dimensions
Approx. 8.75″ x 4.5″ x 4.5″
Weight
Approx. 2 Lbs.
Industries We Serve
Forestry | Utilities | Agriculture
The Stryker Pro Transmitter enhances control for machine operations in forestry, utility service vehicles and advanced agricultural equipment.
Concrete | Construction | Municipal
The Stryker Pro Transmitter provides precise operation for construction equipment, industrial control systems and municipal maintenance vehicles.
Mining | Metals | Oil & Gas
The Stryker Pro Transmitter ensures reliable control for mining machinery, metal processing systems and oil field equipment.
Defense & Aerospace
The Stryker Pro Transmitter delivers precise operation for military support vehicles and aerospace handling systems.
