The Connects Stocking Program makes selecting cables and I/O blocks for power, sensors, and network simple and fast – all from a single source. Balluff I/O blocks and cables provide flexible and reliable connections with quick and easy integration and commissioning of your machines and systems.

The program’s cables and I/O blocks are polyurethane (PUR) coated, which offers the best overall performance based on a cost/benefits ratio, excelling in resistance to a wide range of materials, liquids, and other harsh or potentially harmful compounds. They fit the North American standard, seamlessly integrating into 85 to 95% of industrial applications. The universal connections allow for simple integration and eliminate the need to mix and match different cable types from different distributors, saving purchasing time, organization, and labor costs.

Selecting the Right Cable

As an engineering partner, systems integrator, and value-added distributor (ESV), we’re here to help you select cables for your machines. Work directly with our technical sales engineers to identify your machine’s needs and the best-fit cables, or follow the steps below to quickly and easily select the right cable on your own.

Color Coding

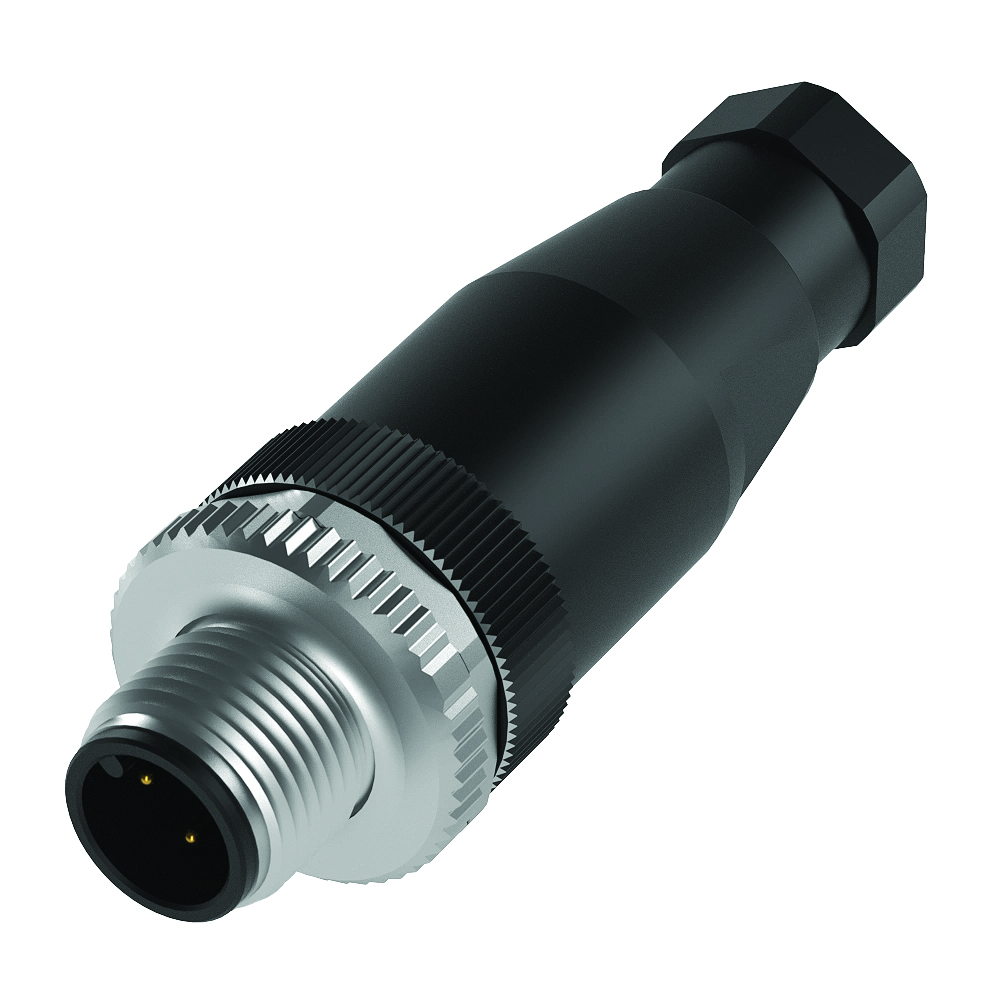

M12 4 & 5 Pin A Coded Connections

• Pin 1 – Brown – power
• Pin 2 – White – signal
• Pin 3 – Blue – power
• Pin 4 – Black – signal
• Pin 5 – Gray – ground or signal

Easy Selection Guide for Machine Builders

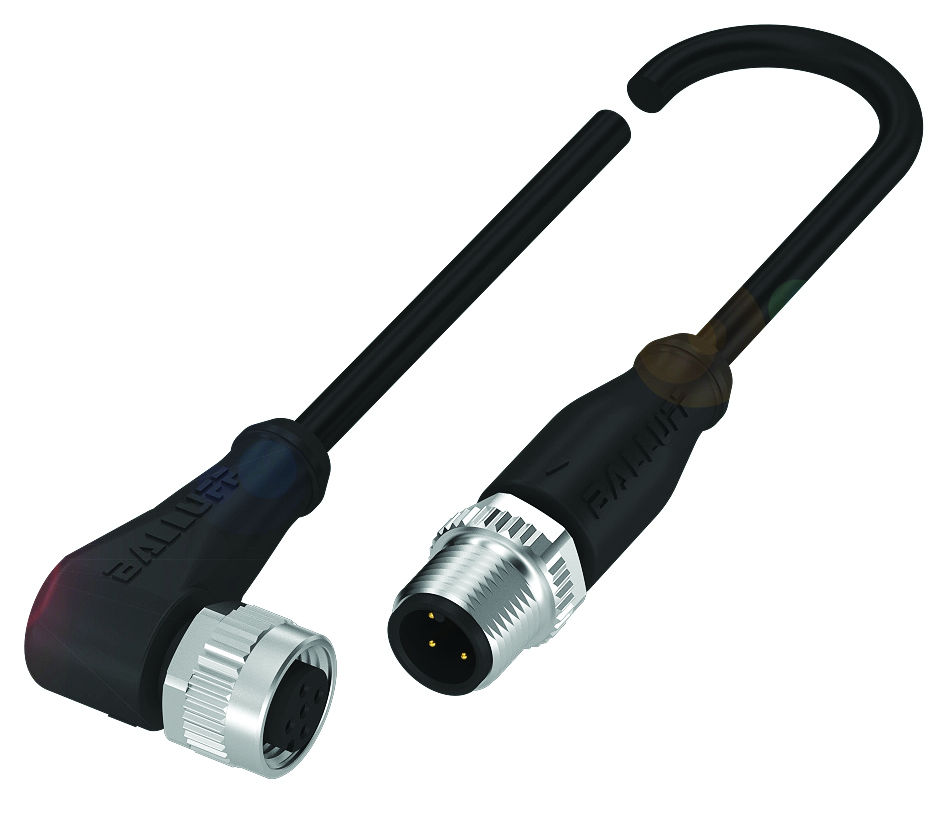

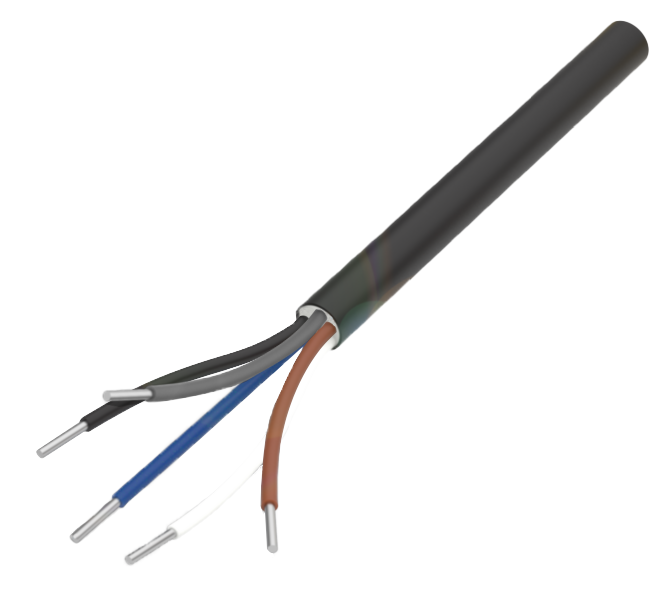

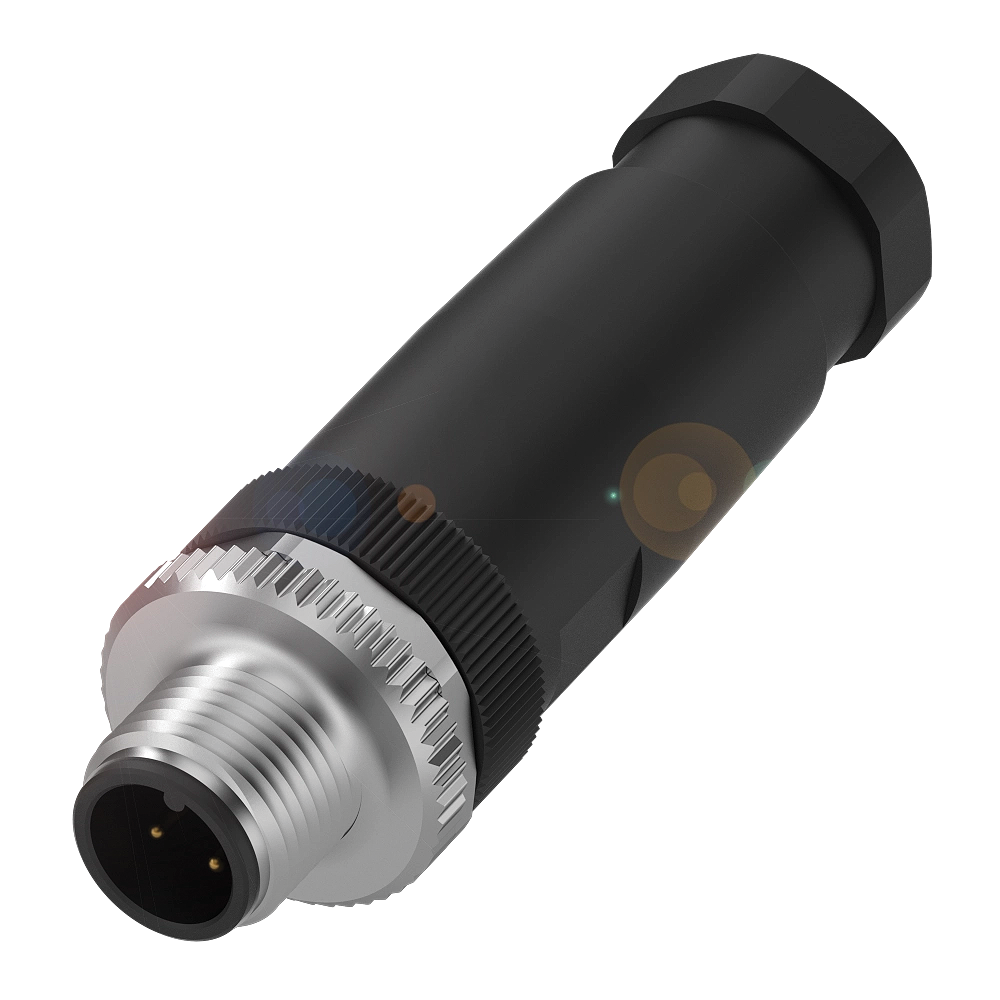

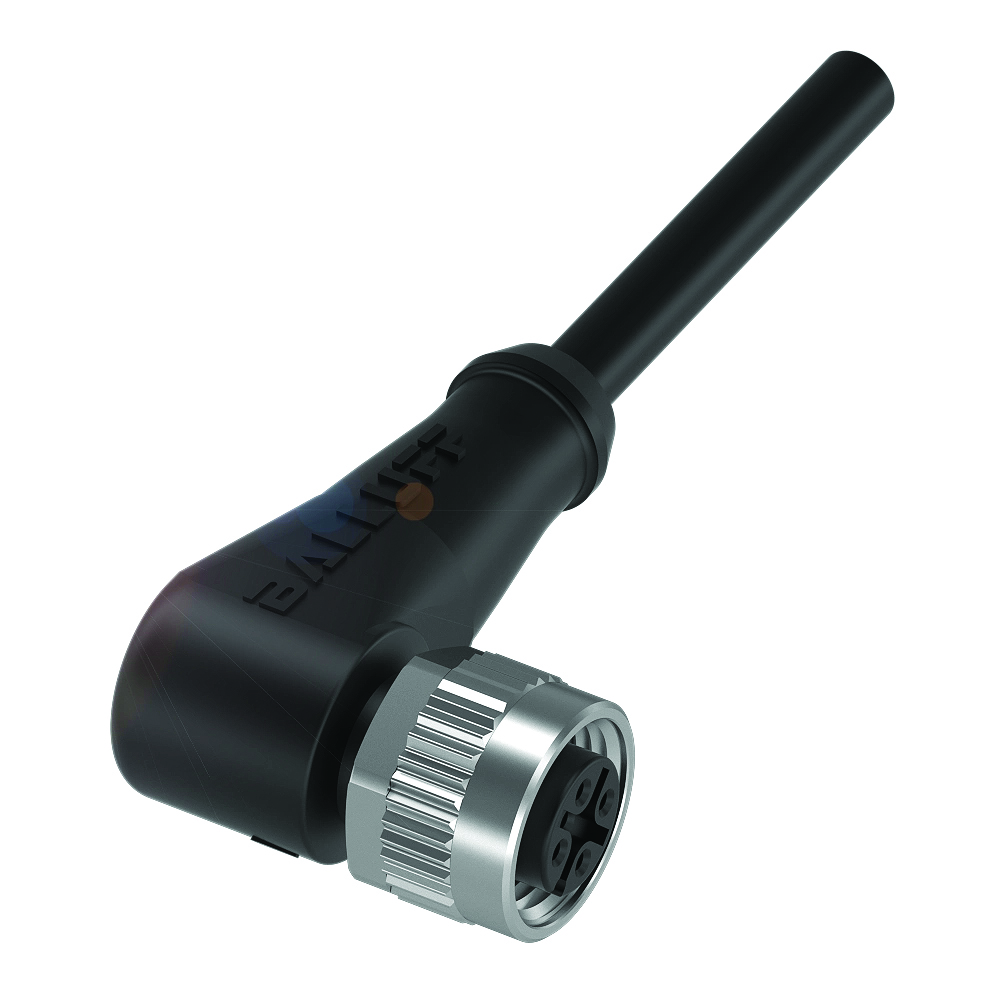

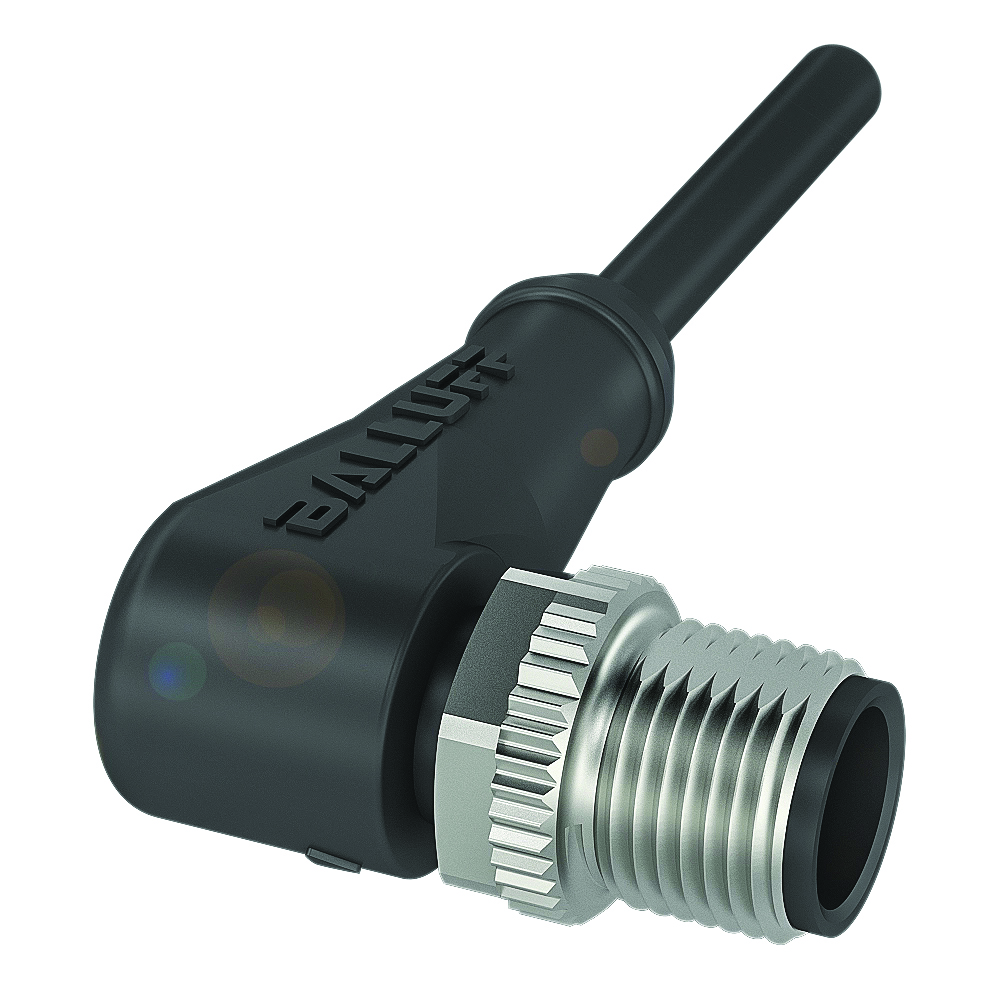

M12, 4 Pin, A Coded, PUR Cable, Black Jacket, 24AWG Wires

Most Common Usage: Sensors, Switches, IO Devices, IO Link

Most Common Usage: Soleniod Valves, Analog Devices, Safety Devices, Grounded Devices

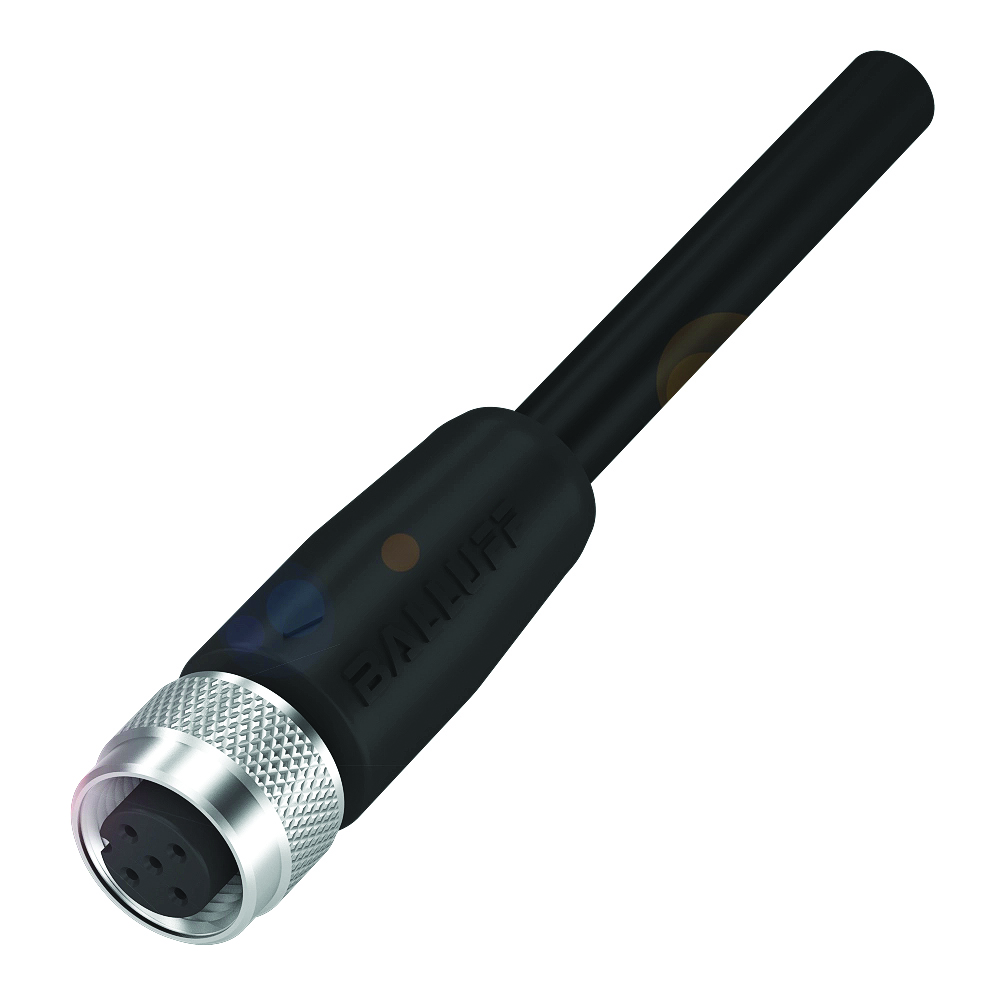

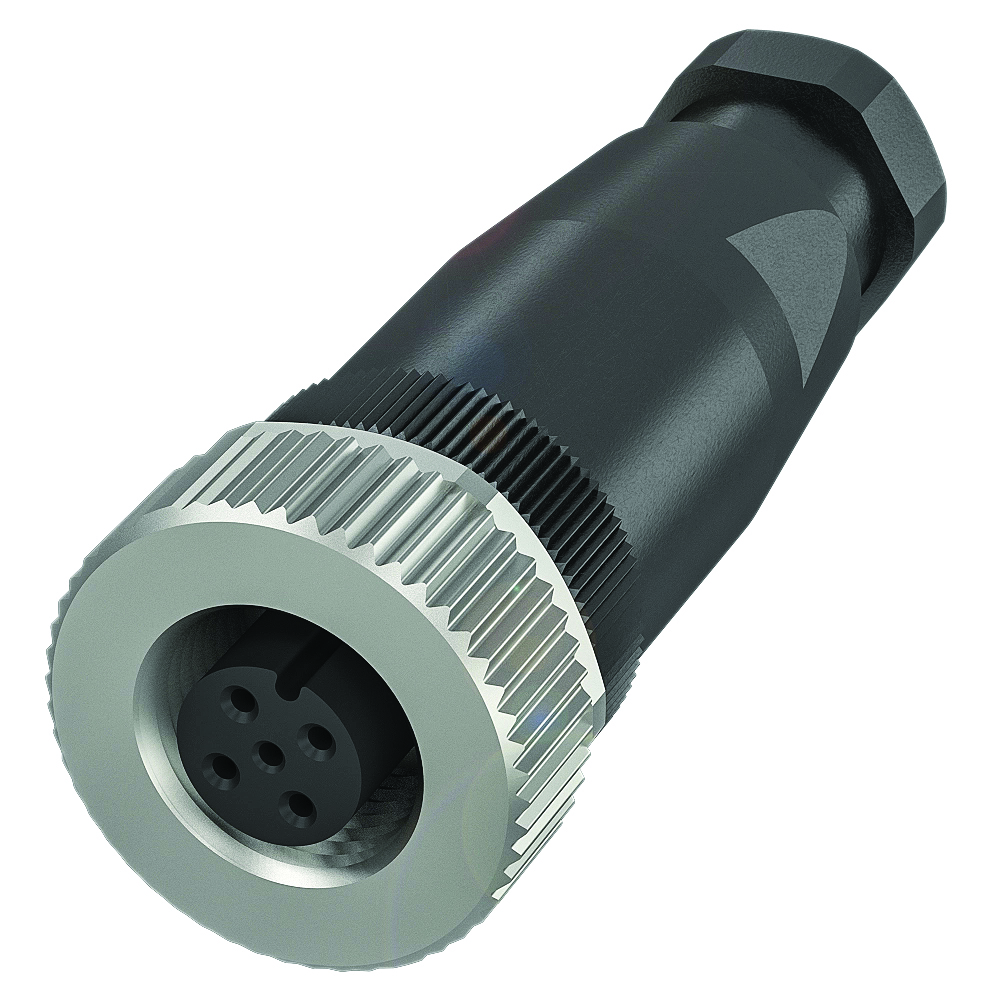

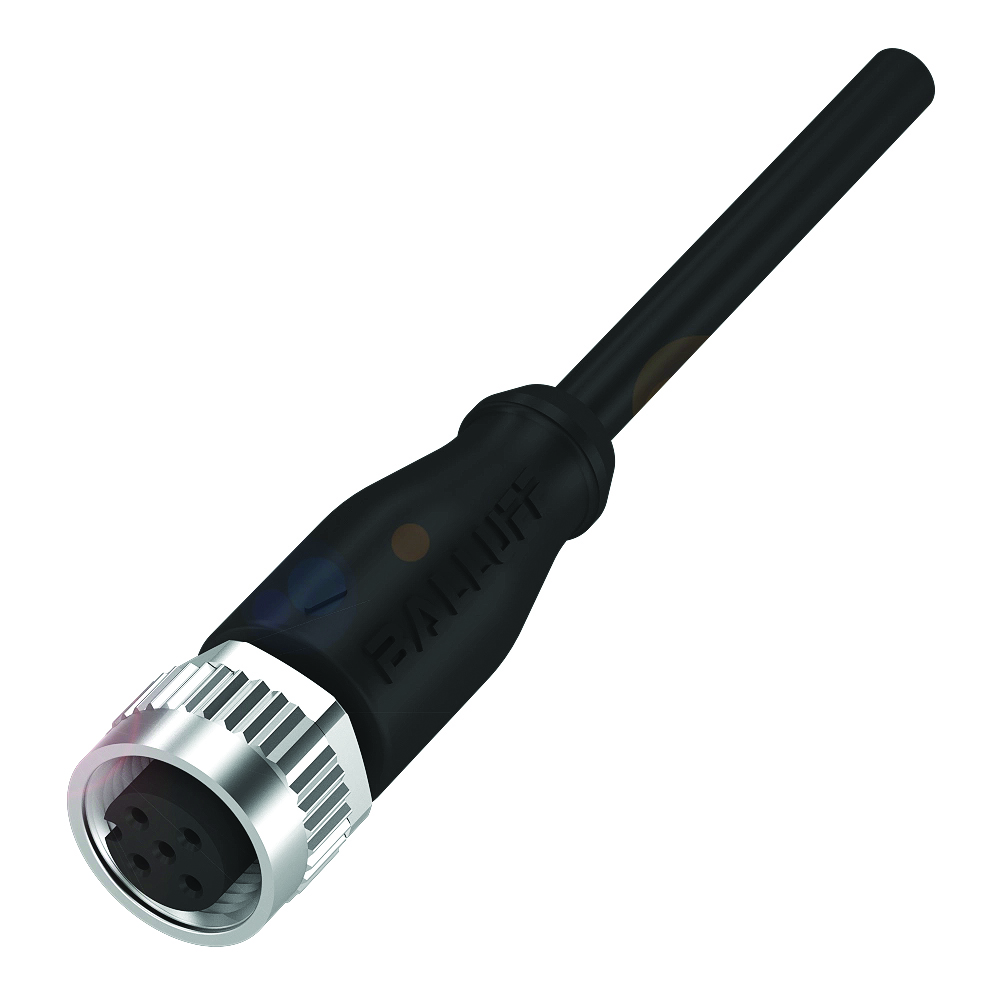

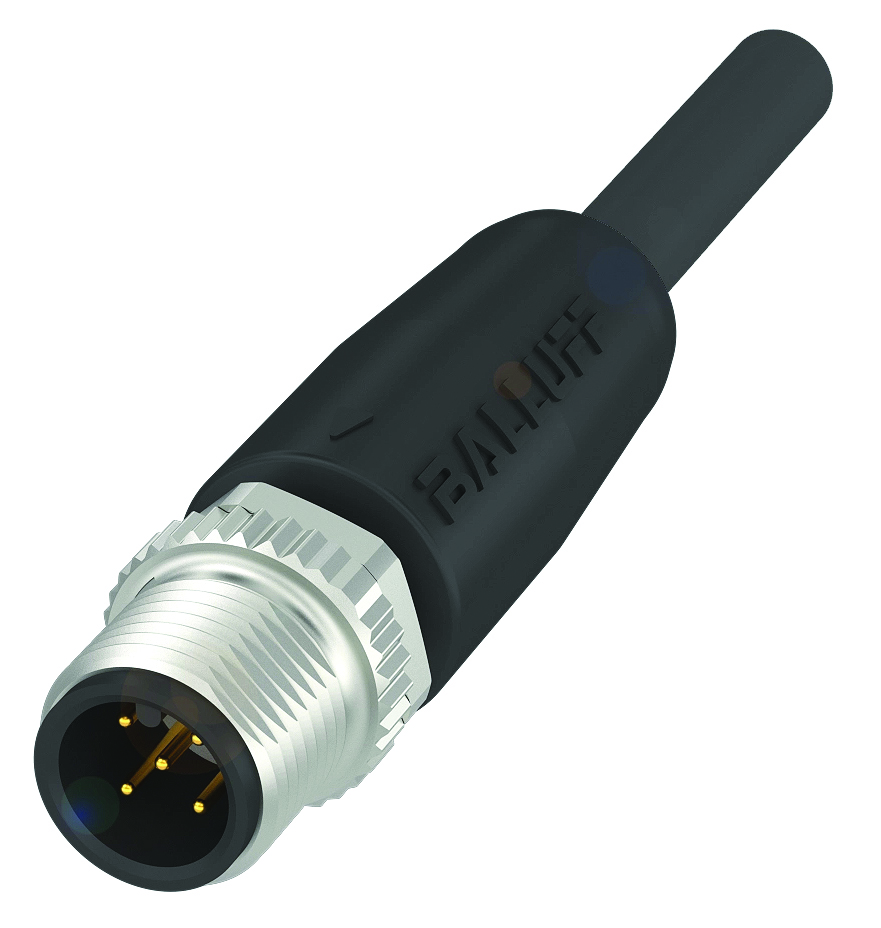

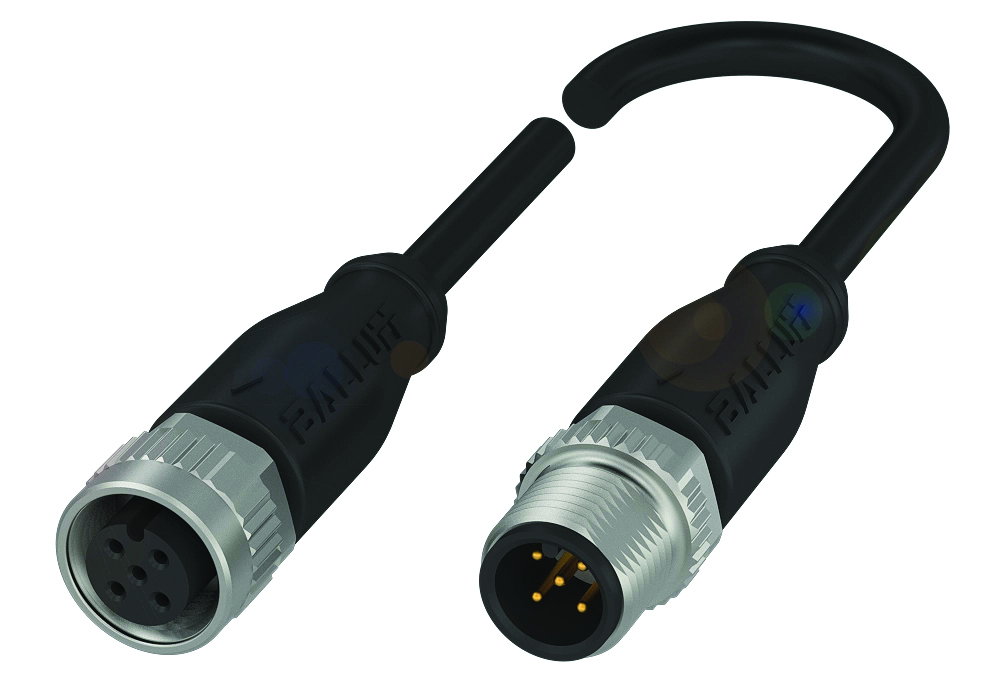

M12, 5 Pin, Shielded, A Coded, PUR Cable, Black Jacket, 24AWG Wires

Most Common Usage: Analog Devices “0-10V”

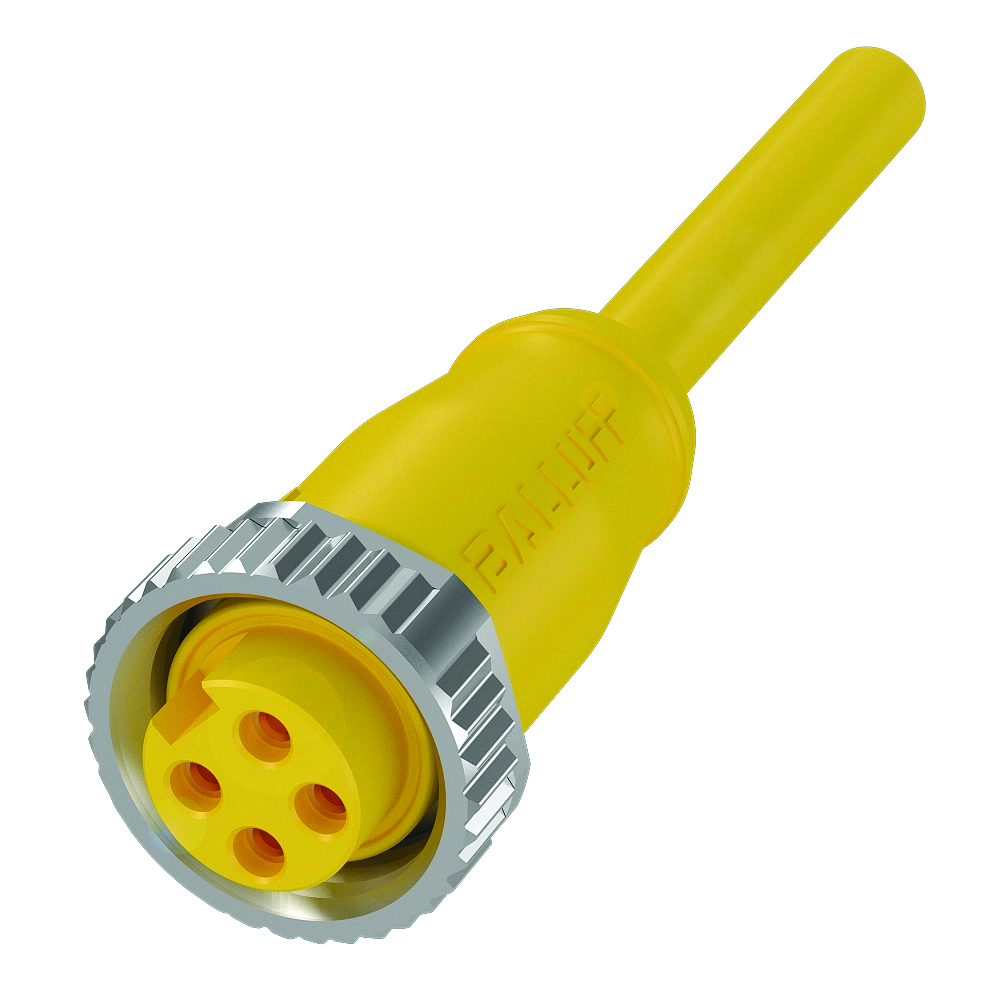

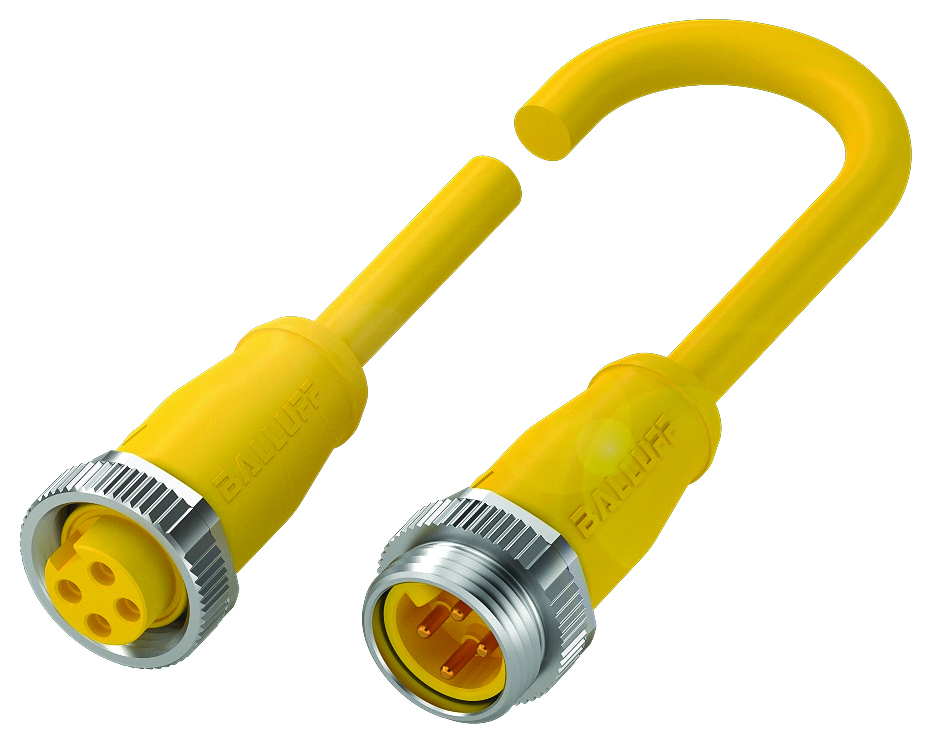

7/8”, 4 Pin, TPE Cable, Yellow Jacket, 16AWG Wires

Most Common Usage: 24VDC Power

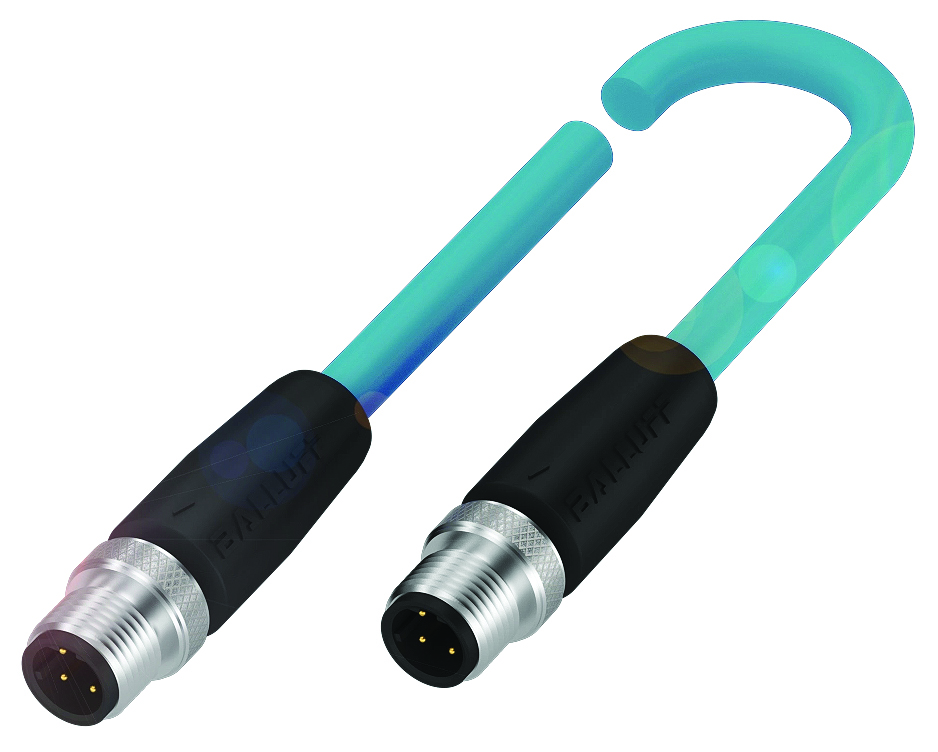

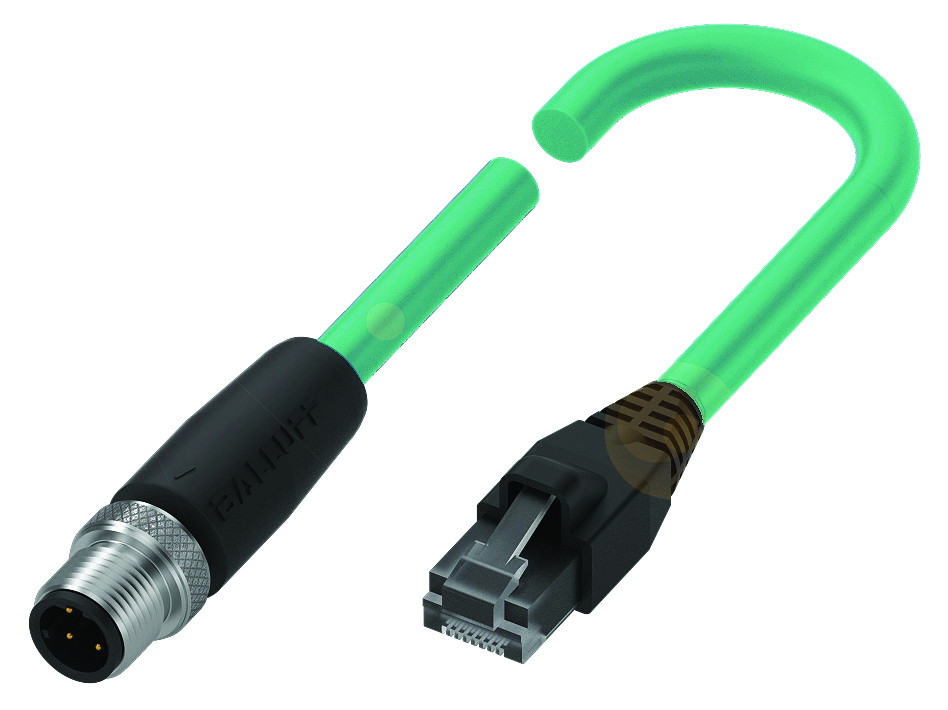

M12, 4 Pin, D Coded, TPE Cable, Teal Jacket

Most Common Usage: Fast Ethernet “Cat 5e” (Ethernet IP, Ethercat, Profinet)

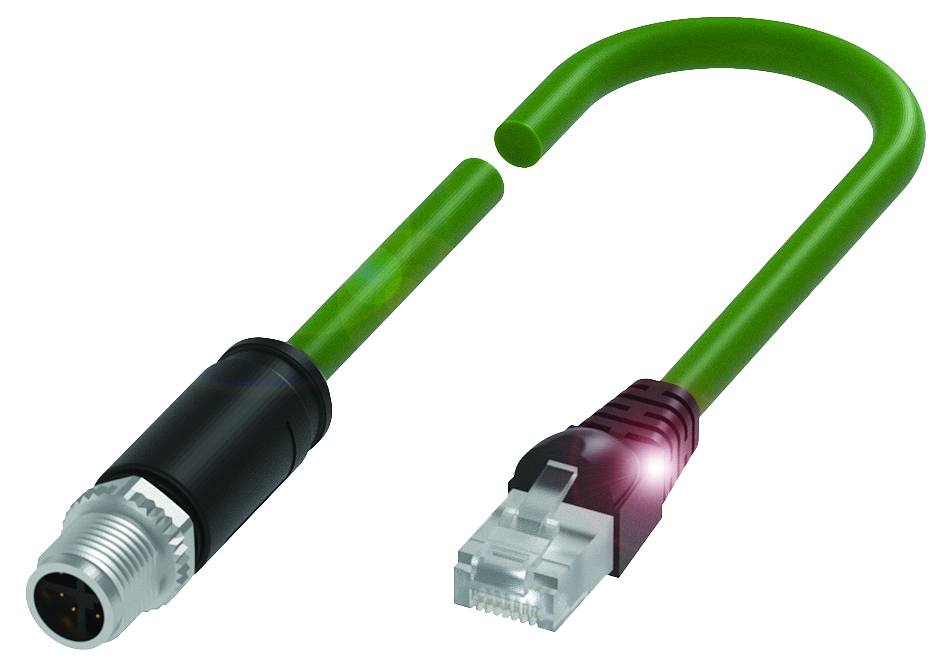

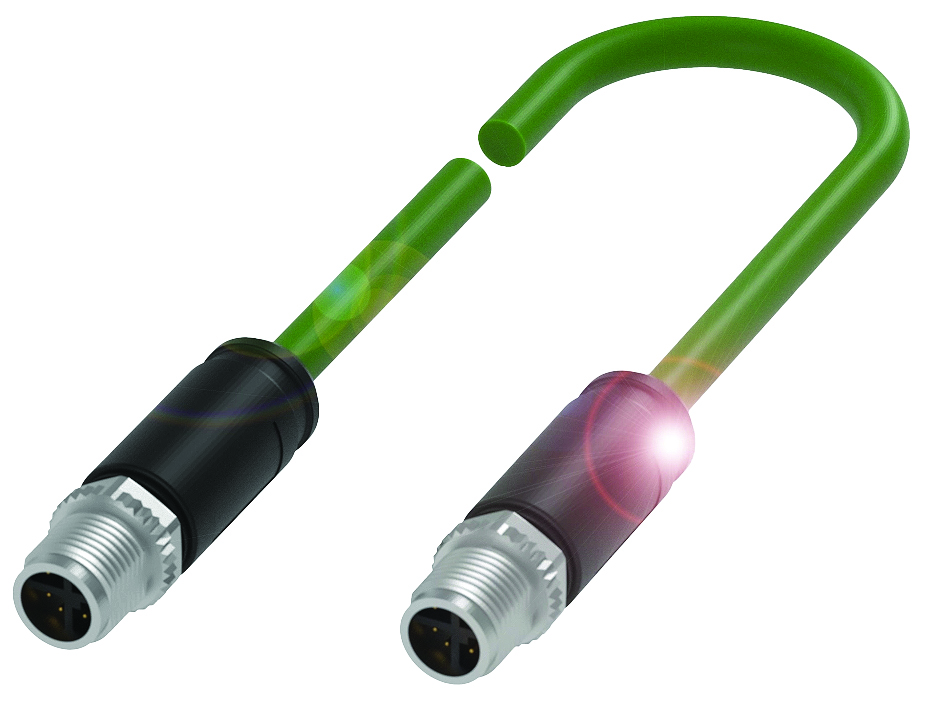

M12, 8 Pin, X Coded, PUR Cable, Green Jacket

Most Common Usage: Gigabit Ethernet “Cat 6” (Ethernet IP, Ethercat, Profinet)

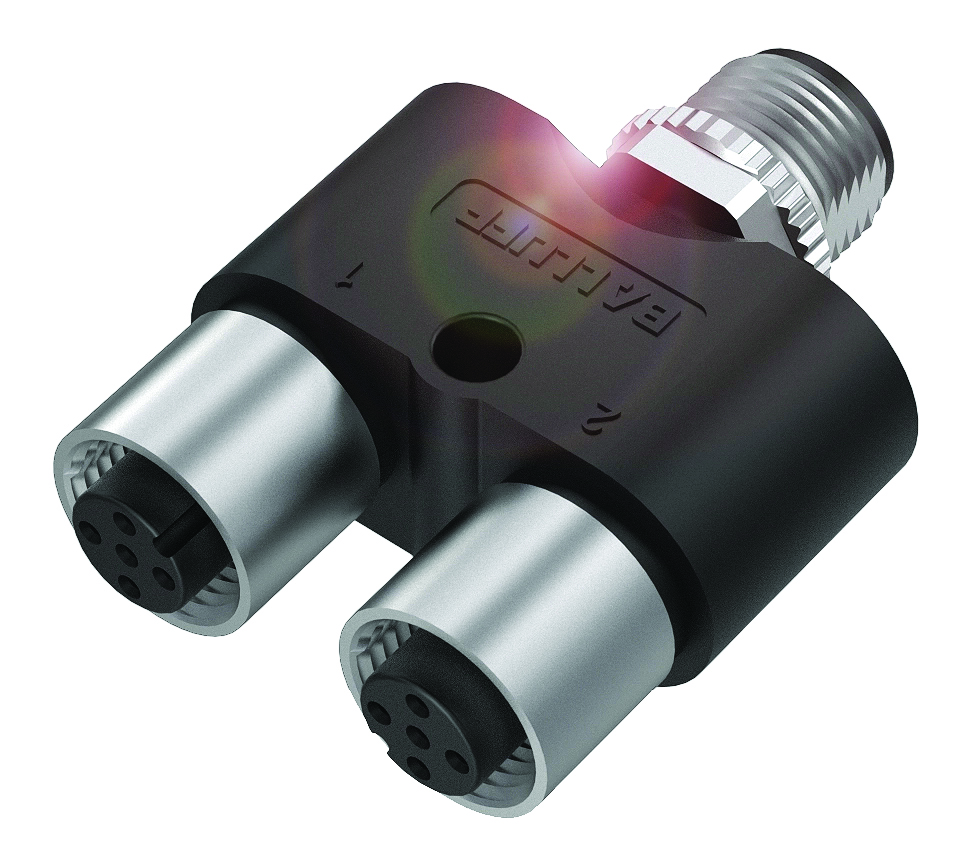

M12, 4 Pin, Tee

Most Common Usage: IO Block Single Port Tee

Connector A Connector B Connector C Model Code Male M12, 5 Pin A Coded Female M12, 4 Pin A Coded Female M12, 4 Pin A Coded BCC089P

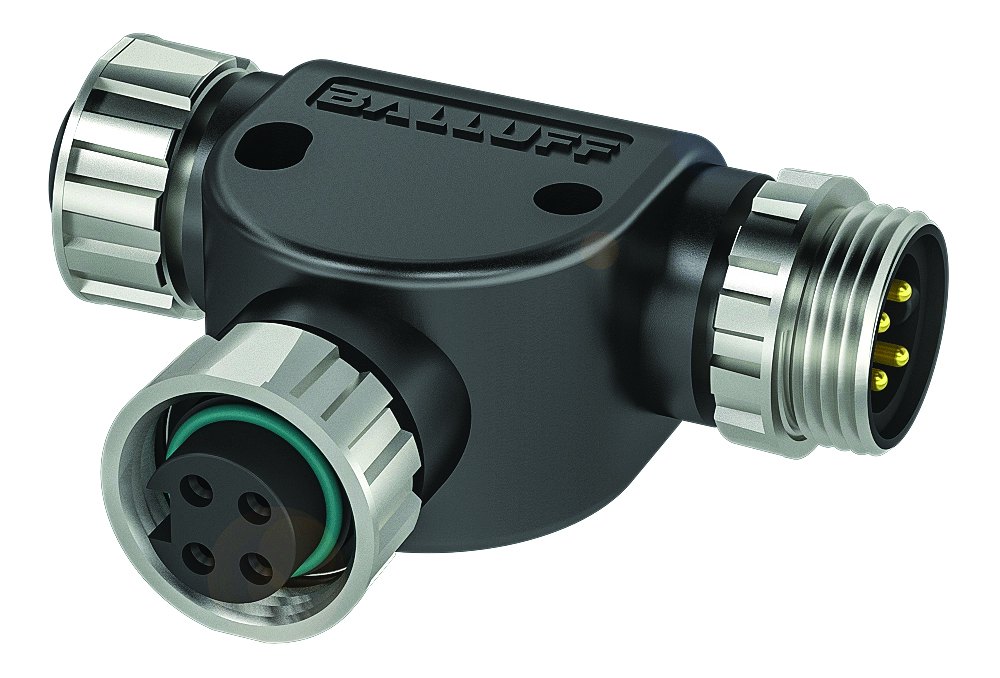

7/8”, 4 Pin, Tee

Most Common Usage: 24VDC Power

Connector A Connector B Connector C Model Code Male 0˚ Male 0˚ Female 0˚ BCC0AA6

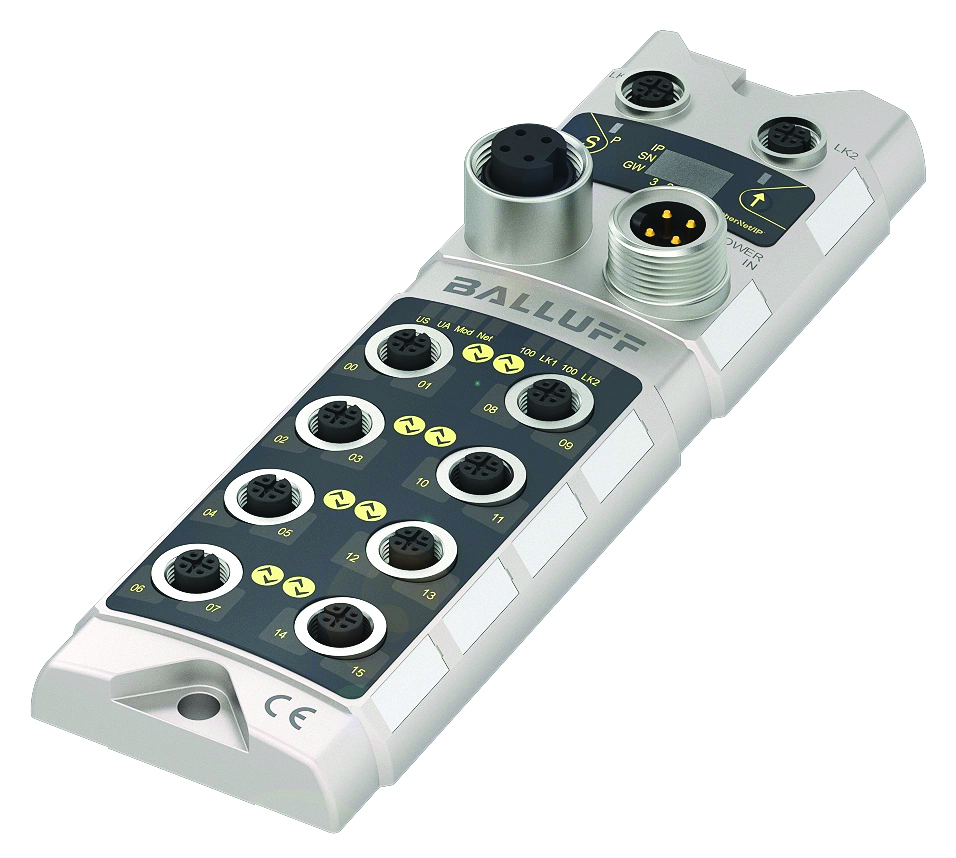

Ethernet IP IO Block, 16 Configurable PNP Inputs/Outputs, 8 IO Link Ports

Most Common Usage: Networking IO

Power Connection Ethernet Connection IO Ports Model Code 7/8″ M12 Female D Coded 5 Pin A Coded Female BNI006A

Easy Selection Guide for Panel Builders

M12, 4 Pin, Female, A Coded, Flying Leads, M16 x 1.5mm Mounting, 24AWG Wires

Most Common Usage: Panel Sensor Connections

Connector A Pin 1 – Brown – power Pin 2 – White -signal Pin 3 – Blue – power Pin 4 – Black – signal Pin 5 – Gray – ground or signal Connector B Length Model Code Female 0˚ Flying Leads .2m BCC08M2 Female 0˚ Flying Leads .5m BCC099C Female 0˚ Flying Leads 2.0m BCC0CAE

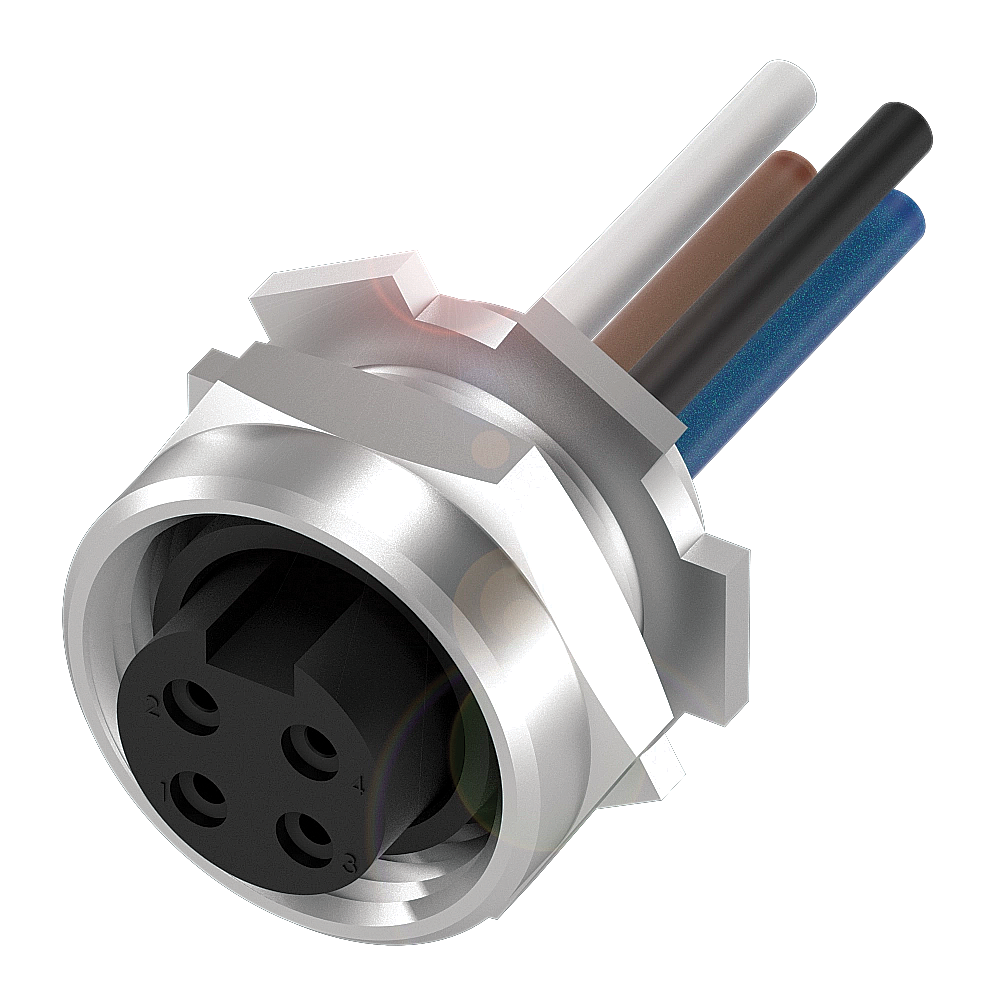

7/8”, 4 Pin, Female, Flying Leads, 1/2” NPT Mounting,
16AWG Wires

Most Common Usage: 24V Remote Power

Connector A Pin 1 – Brown – power Pin 2 – White -signal Pin 3 – Blue – power Pin 4 – Black – signal Connector B Length Model Code Female 0˚ Flying Leads .6m BCC0E63 Female 0˚ Flying Leads .6m BCC0720

M12, 4 Pin, Male, A Coded, Flying Leads, M16 x 1.5mm Mounting,
24AWG Wires

Most Common Usage: Panel Sensor Connections

Connector A Pin 1 – Brown – power Pin 2 – White -signal Pin 3 – Blue – power Pin 4 – Black – signal Connector B Length Model Code Male 0˚ Flying Leads .2m BCC08M1 Male 0˚ Flying Leads .5m BCC099A Male 0˚ Flying Leads 2.0m BCC0E53

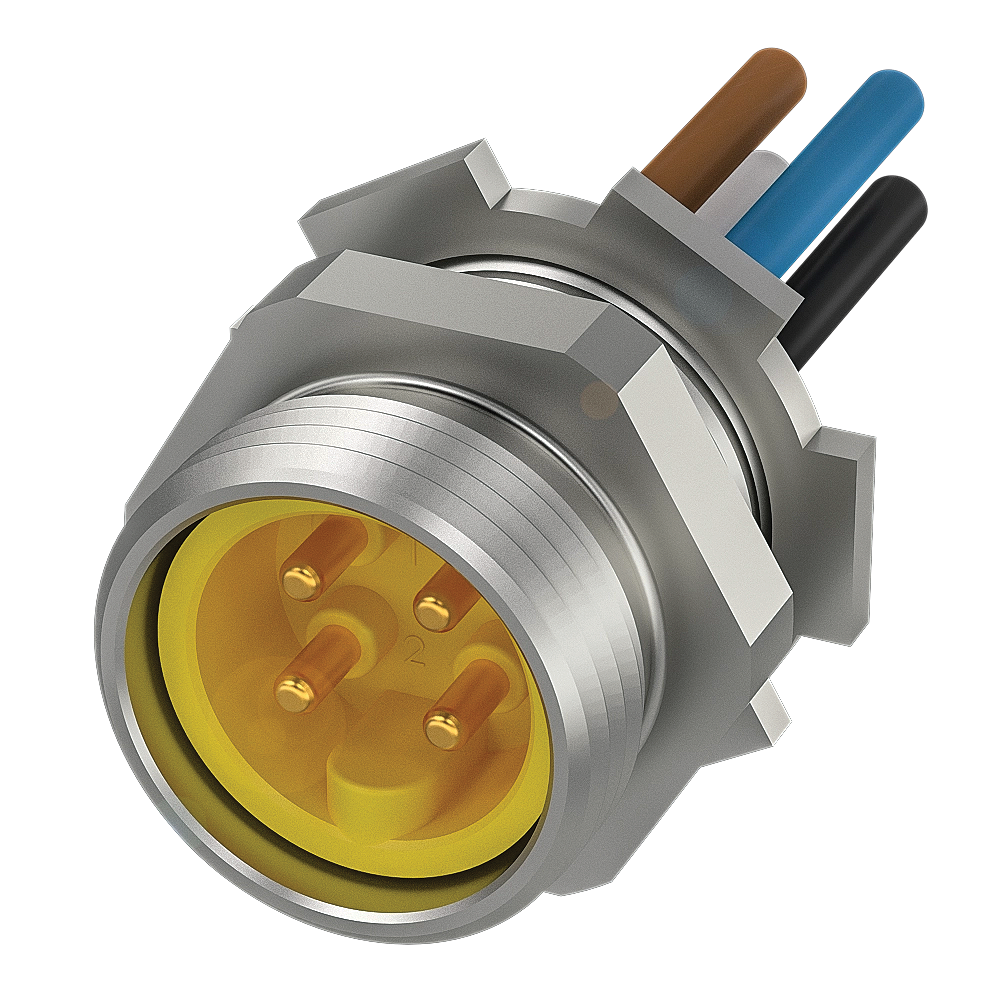

7/8”, 4 Pin, Male, Flying Leads, 1/2” NPT Mounting,
16AWG Wires

Most Common Usage: 24V Remote Power

Connector A Pin 1 – Brown – power Pin 2 – White -signal Pin 3 – Blue – power Pin 4 – Black – signal Connector B Length Model Code Male 0˚ Flying Leads .6m BCC0E64 Male 0˚ Flying Leads 2.0m BCC0722

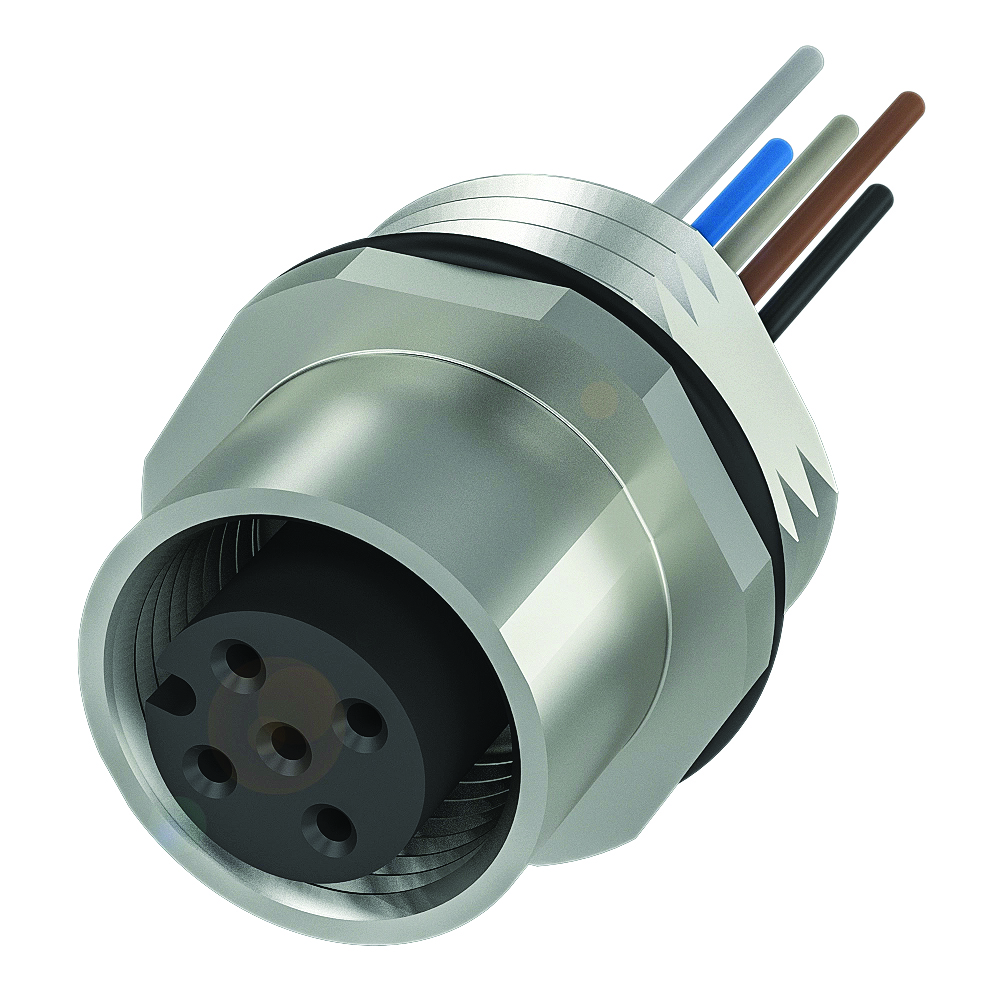

M12, 5 Pin, Female, A Coded, Flying Leads, M16 x 1.5mm Mounting, 24AWG Wires

Most Common Usage: Panel Sensor Connections

Connector A Pin 1 – Brown – power Pin 2 – White -signal Pin 3 – Blue – power Pin 4 – Black – signal Pin 5 – Gray – ground or signal Connector B Length Model Code Female 0˚ Flying Leads .5m BCC09JZ Female 0˚ Flying Leads .5m BCC0E54

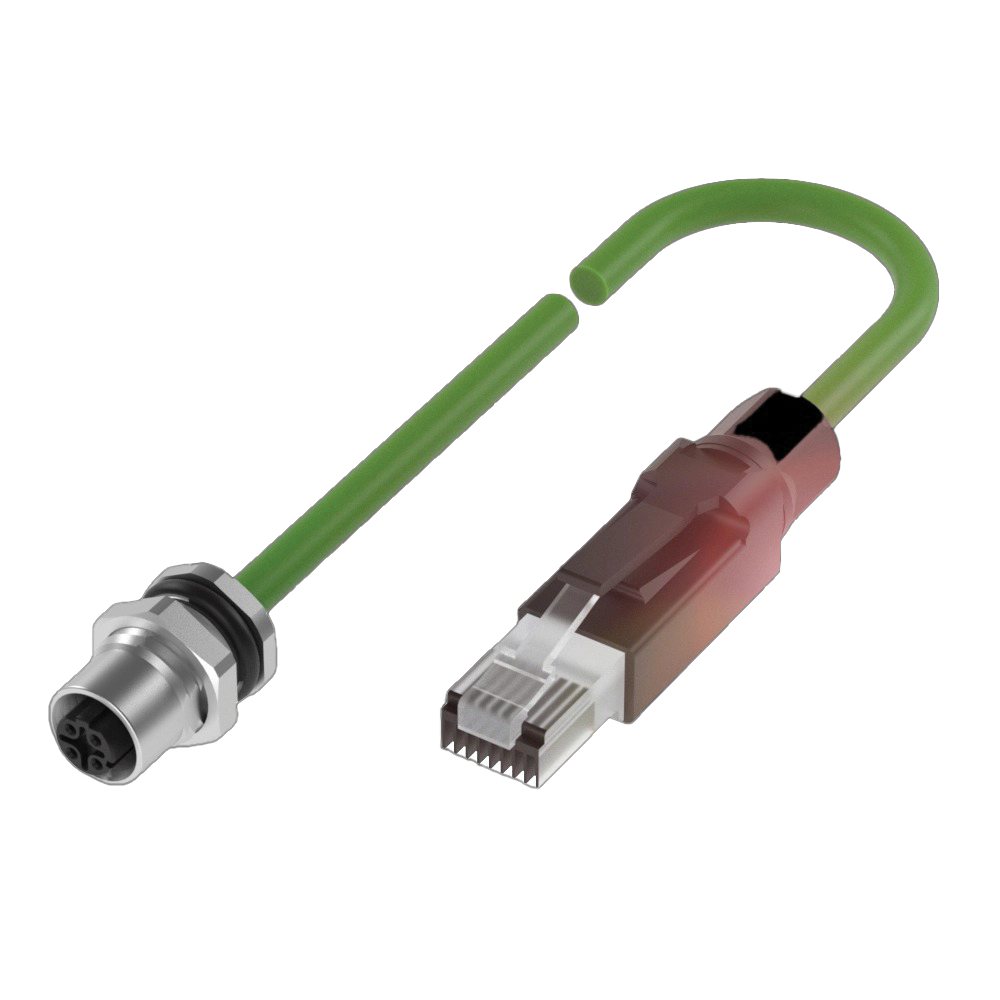

M12, 4 Pin, D Coded, PUR Cable, Green Jacket

Most Common Usage: Fast Ethernet “Cat 5e” (Ethernet IP, Ethercat, Profinet)

Connector A Connector B Length Model Code Female 0˚ RJ45 0˚ .6m BCC0FYW Female 0˚ RJ45 0˚ 1m BCC0HH5 Female 0˚ RJ45 0˚ 2m BCC0FYY</a Female 0˚ RJ45 0˚ 5m BCC0FYZ</a

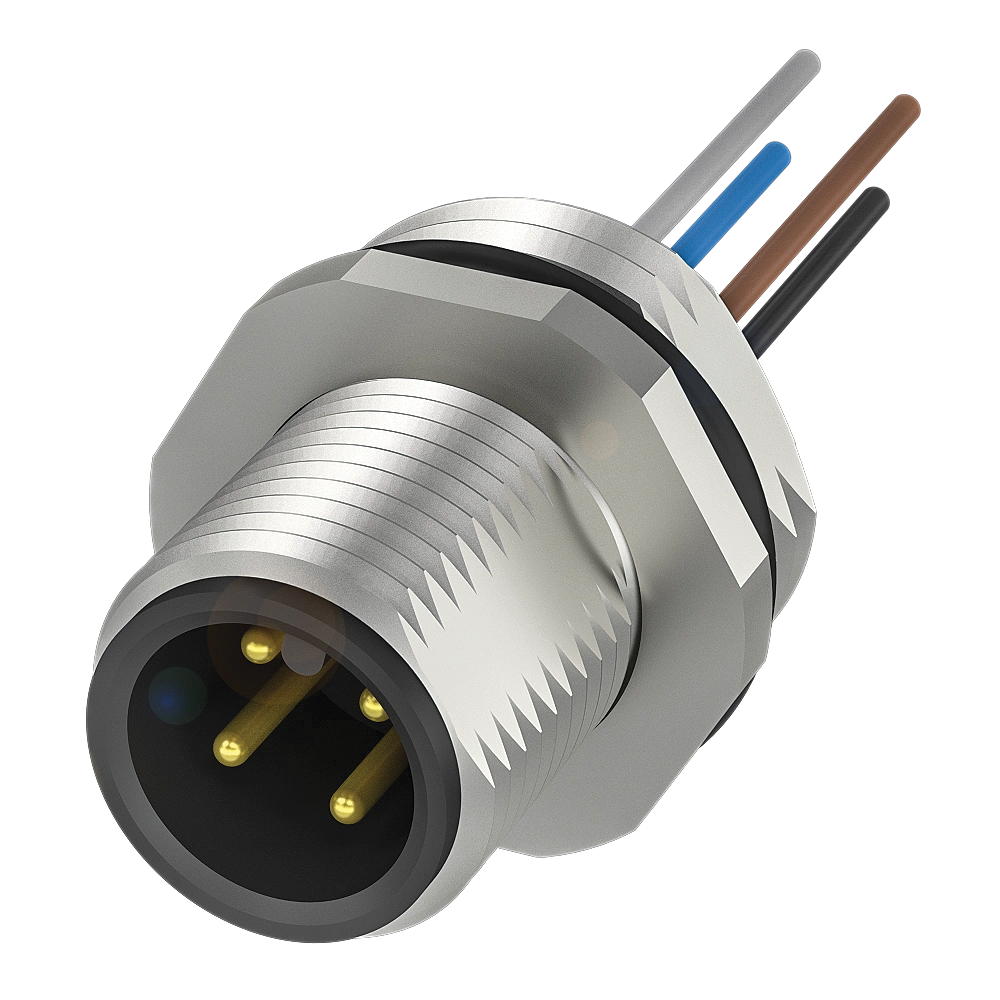

M12, 5 Pin, Male, A Coded, Flying Leads, M16 x 1.5mm Mounting, 24AWG Wires

Most Common Usage: Panel Sensor Connections

Connector A Pin 1 – Brown – power Pin 2 – White -signal Pin 3 – Blue – power Pin 4 – Black – signal Pin 5 – Gray – ground or signal Connector B Length Model Code Male 0˚ Flying Leads .5m BCC09K0 Male 0˚ Flying Leads 2.0m BCC0E5F

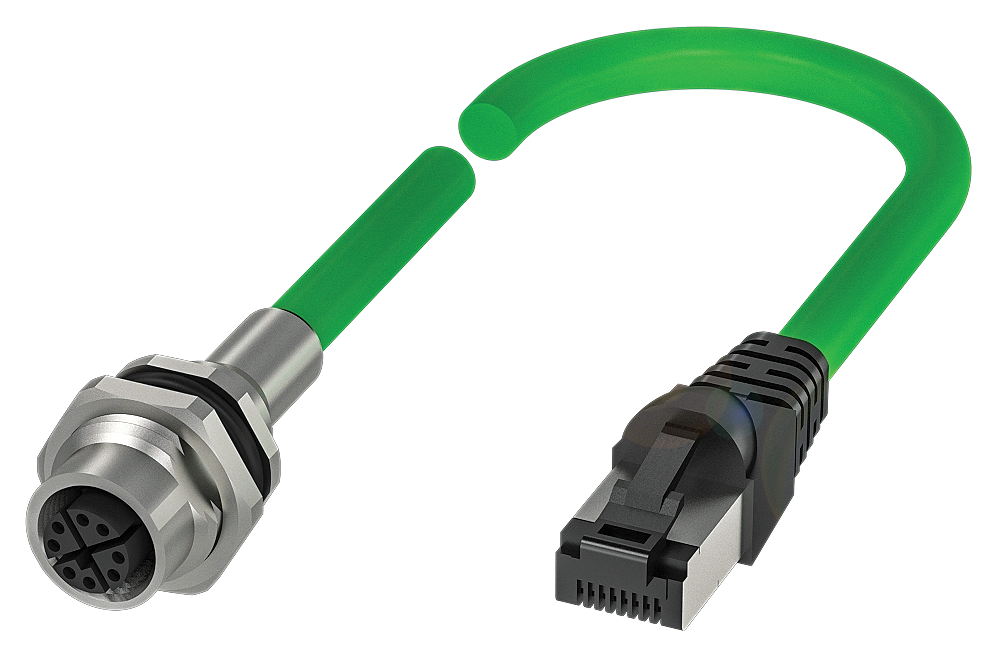

M12, 8 Pin, x Coded, TPE Cable, Green Jacket

Most Common Usage: Fast Ethernet “Cat 5e” (Ethernet IP, Ethercat, Profinet)

Connector A Connector B Length Model Code Female 0˚ RJ45 0˚ .6m BCC0LJP Female 0˚ RJ45 0˚ 1m BCC0LJR Female 0˚ RJ45 0˚ 2m BCC0LJT Female 0˚ RJ45 0˚ 5m BCC0LJU
