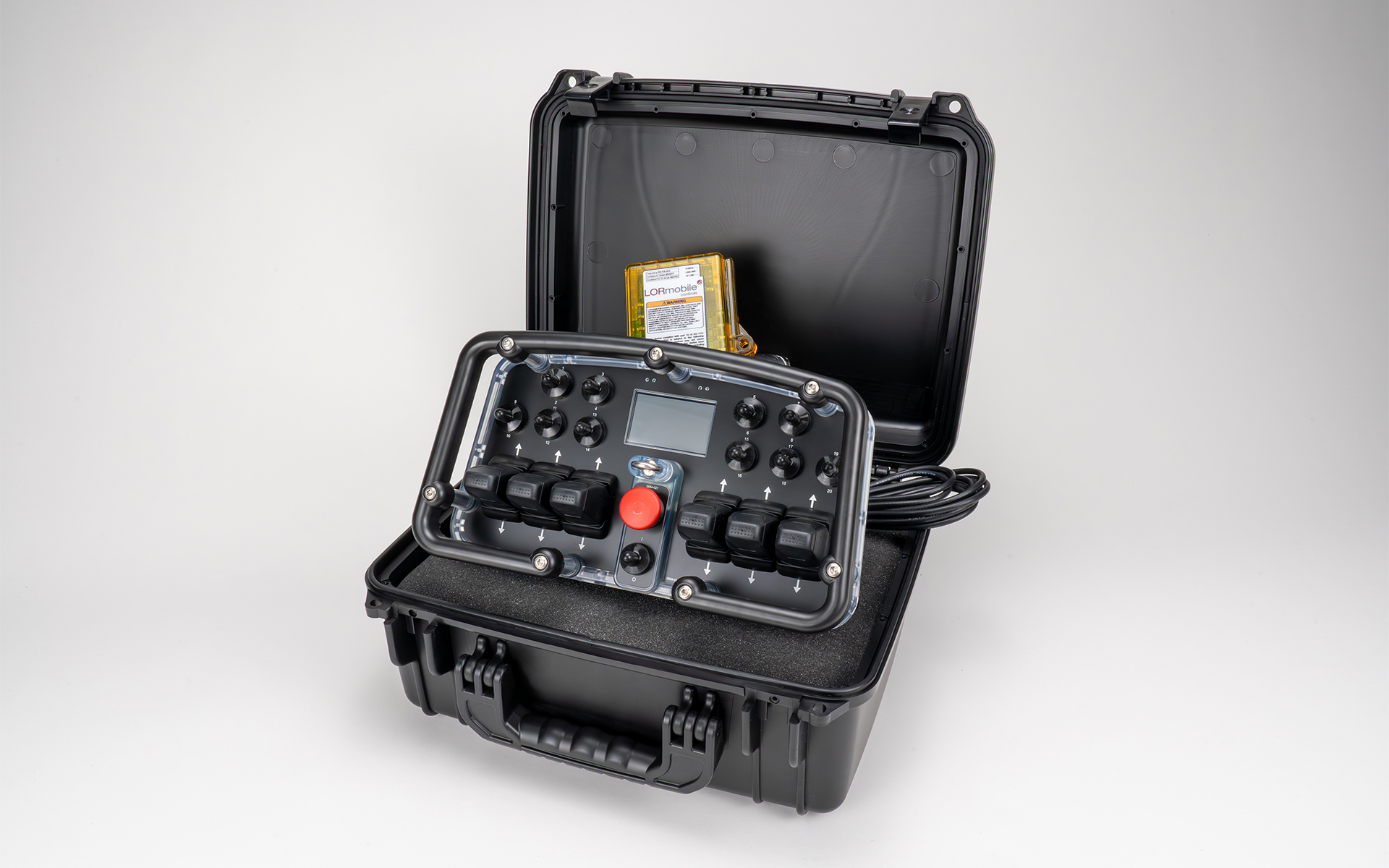

6-Paddle, 10-Toggle Switch Remote
The Stryker Pro+ is a belly box style transmitter with six single-axis proportional paddies and 10 momentary multi-direction toggle switches that give operators a complete command console for mobile equipment. Experience excellent signal strength and reliability with our robust 2.4 GHz FEX technology with dipole internal antennas. The Stryker Pro+ features a 2.7” sunlight-readable display for engine, sensor and machine feedback or transmitter setup/diagnostics. The twist-to-unlock machine stop switch, barrel charging port and magnetic base make this industrial controller ideal for complex applications.
Details
Specs
Documentation
Related Products
Model #: LXL-24-PDL
Details:
- Transmitter: Stryker Pro+ Transmitter
- Pairs with LXB Receiver or LXC Receiver
- 6139: AC charging cable
- Protective case
- 8250: LXB or 8251: LXC receiver harness with flying leads
- 5318: Charging docking station with AC/DC charging cables
- 6195: Diode suppression kit (Required with LXB receiver)
- Customization available with 15pc MOQ (Additional engineering fees may apply)
+
–
General Specifications 900 MHz
Frequency Range
ISM 902 MHz – 928 MHz
Frequency Control
7 Frequency hopping channels (Software Selectable)
Modulation
DSSS (Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
+
–
General Specifications 2.4 GHz
Frequency Range
2400 – 2483.5 MHz
Frequency Control
42 Frequency hopping channels (Software Selectable)
Modulation
MSK
Security
Channelization, System ID, and Vendor ID
Operating Temperature
-40°C – 85°C (-40°F – 185°F)
Humidity
Up to 90% RH, non-condensing
+
–
Transmitter Specifications
Display
320 × 240 Sunlight-Readable E-Ink
Battery Voltage
7 NiMH Rechargeable Batteries—2000 mAh
Supply Voltage
15-32 VDC; 1A max
Max. Current Consumption
< 200 mA (RF Active)
Digital Inputs
36 available
Analog Inputs
16 available—0-5 VDC (configurable as digital inputs)
LED Outputs
Four (RF and Error)
Battery Life
15 h Typical (Usage dependent)
Dimensions
Approx. 12″ × 6.75″ × 5.1″
Weight
Approx. 4 lbs
Enclosure
IP67
Industries We Serve
Forestry | Utilities | Agriculture
The Stryker Pro+ Wireless Remote Kit enhances control for tree harvesters, utility service trucks and high-efficiency sprayers.
Concrete | Construction | Municipal
The Stryker Pro+ Wireless Remote Kit provides precise operation for concrete boom pumps, tower cranes and waste collection trucks.
Mining | Metals | Oil & Gas
The Stryker Pro+ Wireless Remote Kit ensures reliable control for excavators, metal forging hammers and offshore drilling equipment.
Defense & Aerospace
The Stryker Pro+ Wireless Remote Kit delivers precise operation for armored personnel carriers and aerospace maintenance lifts.
